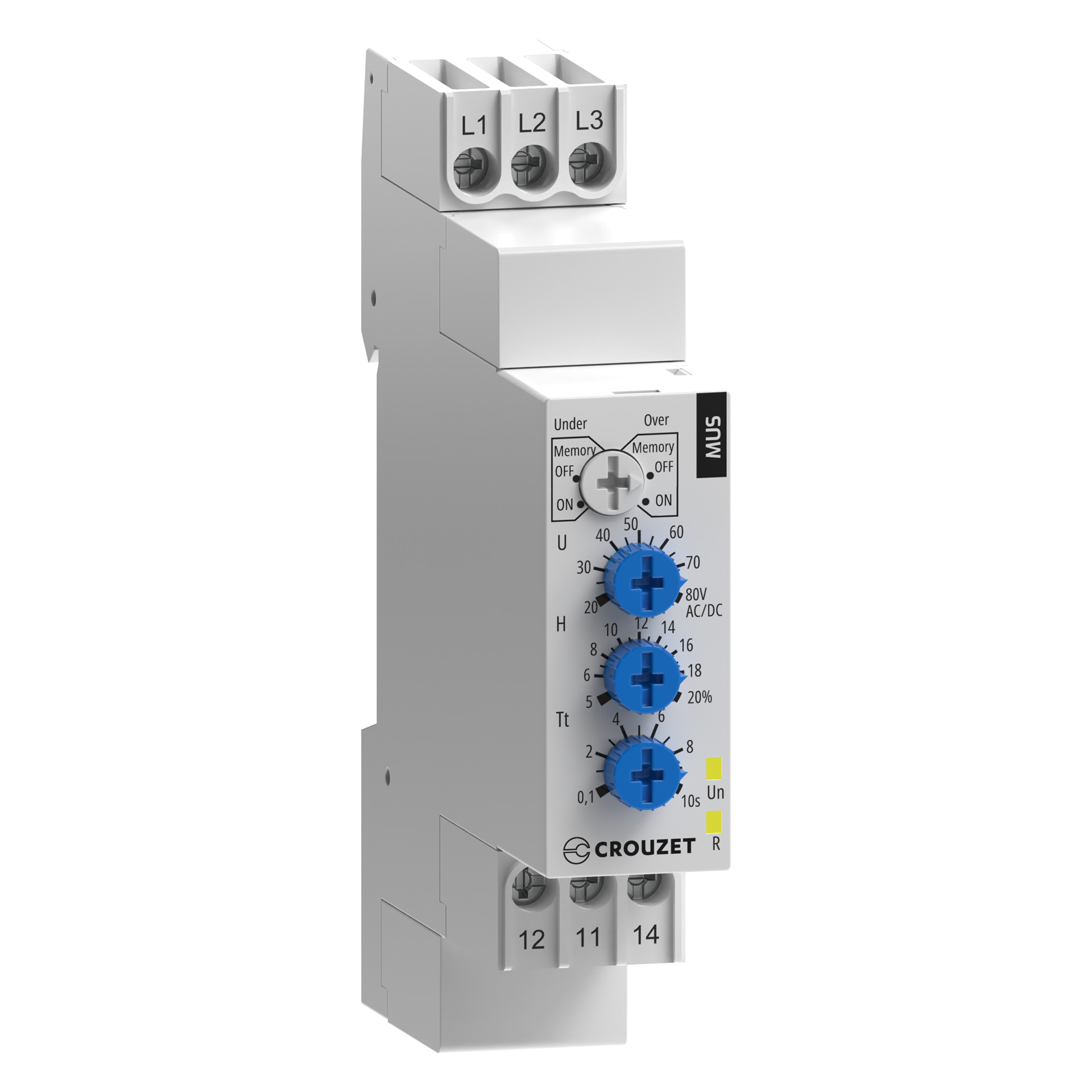

Voltage Monitoring Relay MUS80, Single-Phase, Measuring Range 20-80 VAC/DC, 24-48 VAC/VDC, 1 C/O, 5 A, DIN Rail, 17.5 mm
Media & Documents
- Product info
- Product key features, technical specs, technical schemas and more.
- Certifications
- RoHS Approval, EU Declaration, ATEX Conformity and more.
- Media Kit
- High Resolution pictures, Arguments and more.
Distributors Stock Check
Checking stock arround the globe
Technical Specifications
| N/A | |
| Contains function DC-over voltage | true |
| Contains function DC-under voltage | true |
| Contains function DC-voltage hysteresis | true |
| Depth | 69 |
| Height | 90 |
| Max. permitted delay-on energization time | 10 |
| Max. permitted off-delay time | 10 |
| Min. adjustable delay-on energization time | 0.1 |
| Min. adjustable off-delay time | 0.1 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Rated control supply voltage Us at AC 50HZ | 24-48 |
| Rated control supply voltage Us at AC 60HZ | 24-48 |
| Rated control supply voltage Us at DC | 24-48 |
| Response value voltage | N/A |
| Single-phase hysteresis possible | true |
| Single-phase over voltage possible | true |
| Single-phase under voltage possible | true |
| Three-phase hysteresis possible | false |
| Three-phase over voltage possible | false |
| Three-phase under voltage possible | false |
| Type of electric connection | Screw connection |
| Type of voltage measurement range | AC/DC |
| Voltage measurement range 1 | 20-80 |
| Voltage measurement range 2 | N/A |
| Voltage type for actuating | AC/DC |
| Width | 17.5 |
| With detachable clamps | false |
