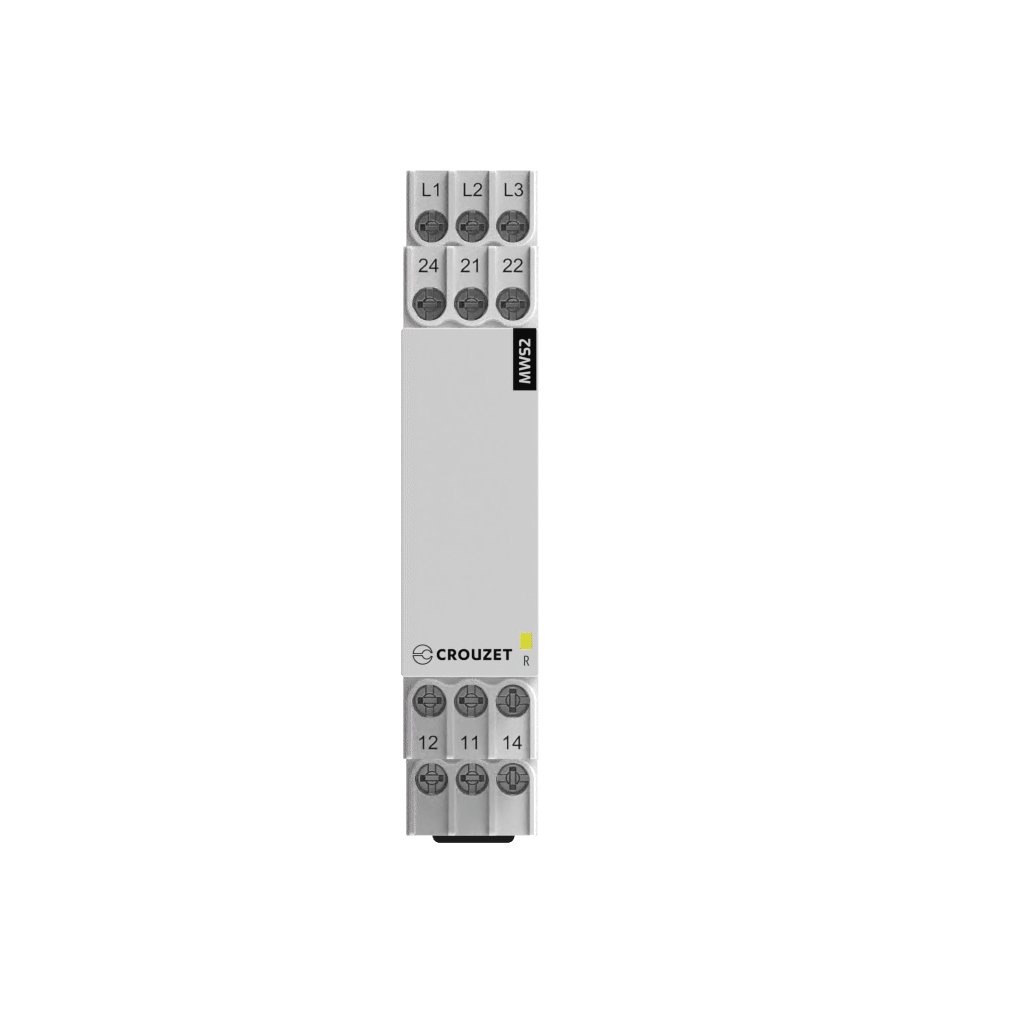

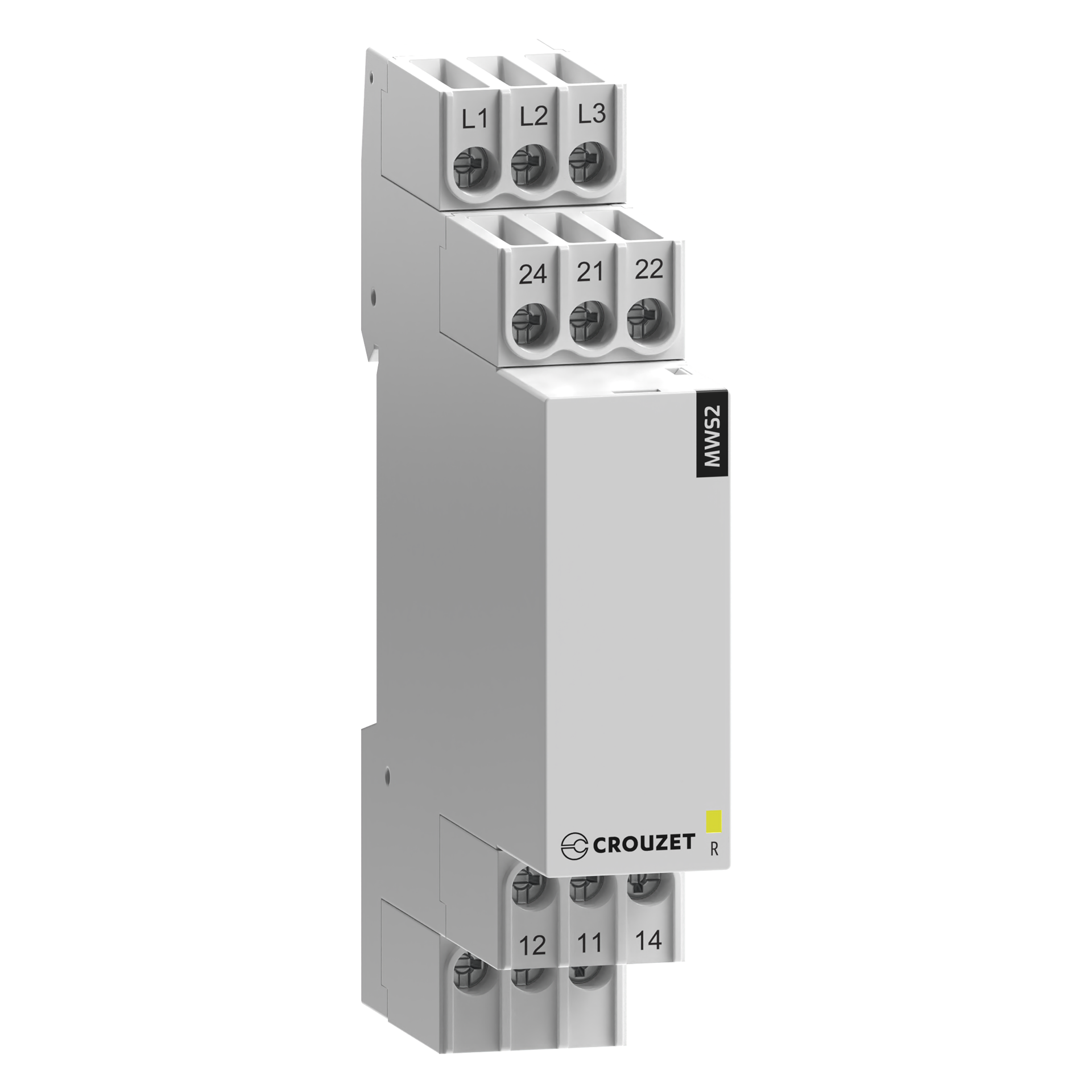

Phase Monitoring Relay MWS2, Three-Phase, Measuring Range 183-484 VAC, 208-480 VAC, 2 C/O, 5 A, DIN Rail, 17.5 mm
Media & Documents
- Product info
- Product key features, technical specs, technical schemas and more.
- Certifications
- RoHS Approval, EU Declaration, ATEX Conformity and more.
- Media Kit
- High Resolution pictures, Arguments and more.
Distributors Stock Check
Checking stock arround the globe
Technical Specifications
| N/A | |
| Depth | 69 |
| Function over voltage detection | false |
| Function under voltage detection | false |
| Height | 90 |
| Max. permitted delay-on energization time | N/A |
| Max. permitted off-delay time | N/A |
| Min. adjustable delay-on energization time | N/A |
| Min. adjustable off-delay time | N/A |
| Number of contacts as change-over contact | 2 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Phase failure detection | true |
| Phase imbalance monitoring | false |
| Phase sequence monitoring | true |
| Rated control supply voltage Us at AC 50HZ | 3 x 208 →3 x 440 V |
| Rated control supply voltage Us at AC 60HZ | 3 x 208 →3 x 440 V |
| Rated control supply voltage Us at DC | N/A |
| Type of electric connection | Screw connection |
| Voltage measurement range | 183-484 |
| Voltage type for actuating | AC |
| Width | 17.5 |
| With detachable clamps | false |
