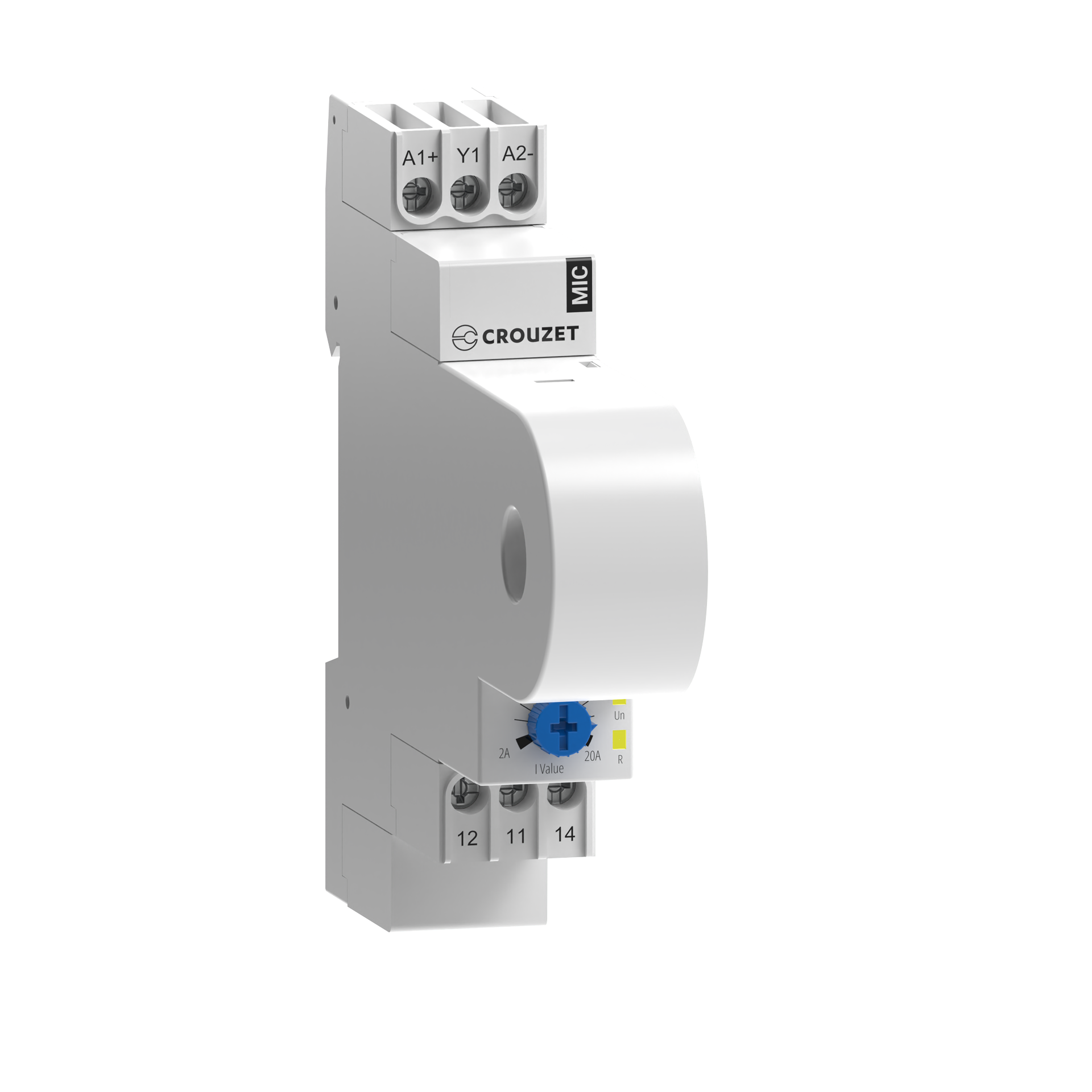

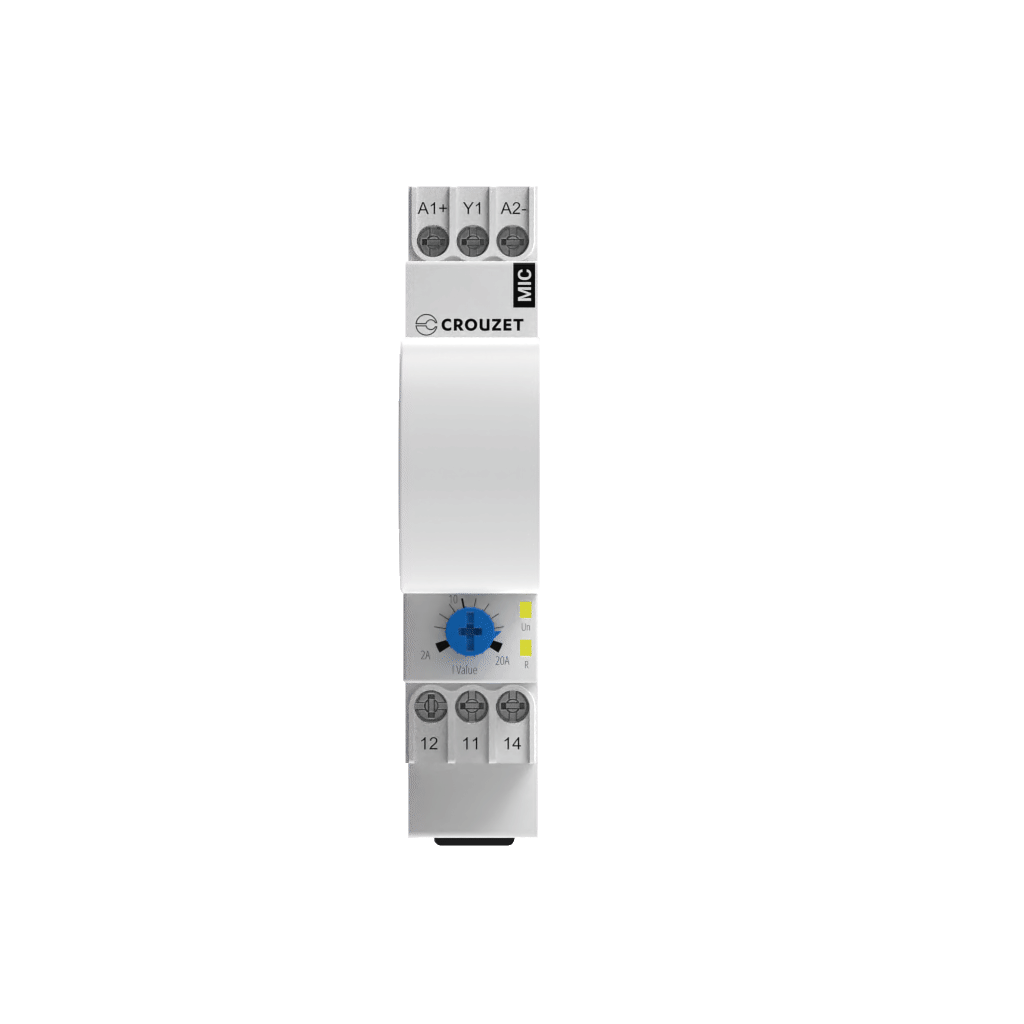

Current Monitoring Relay MIC, Single-Phase, Measuring Range 2-20 A, 24-240 VAC/VDC, 1 C/O, 5 A, DIN Rail, 17.5 mm
Media & Documents
- Product info
-
Product key features, technical specs, technical schemas and more.
- Datasheet EN (PDF)
- Automation & Control Overview EN (PDF)
- Automation & Control Overview FR (PDF)
- Automation & Control Overview IT (PDF)
- Automation & Control Overview DE (PDF)
- Automation & Control Overview ES (PDF)
- Automation & Control Selection Guide EN (PDF)
- Monitoring Relays Selection Guide EN (PDF)
- Monitoring Relays Selection Guide FR (PDF)
- Monitoring Relays Selection Guide IT (PDF)
- Monitoring Relays Selection Guide DE (PDF)
- Monitoring Relays Selection Guide ES (PDF)
- Certifications
- RoHS Approval, EU Declaration, ATEX Conformity and more.
- Media Kit
- High Resolution pictures, Arguments and more.
Distributors Stock Check
Checking stock arround the globe
Technical Specifications
N/A | |
Contains function DC-voltage over current | N/A |
Contains function DC-voltage under current | N/A |
Current measurement range | 2-20 |
Depth | 97 |
External current transformer | N/A |
Function DC-current hysteresis | false |
Height | 90 |
Max. permitted delay-on energization time | N/A |
Max. permitted off-delay time | N/A |
Min. adjustable delay-on energization time | N/A |
Min. adjustable off-delay time | N/A |
Number of contacts as change-over contact | 1 |
Number of contacts as normally closed contact | 1 |
Number of contacts as normally open contact | 1 |
Rated control supply voltage Us at AC 50HZ | 24 - 240 |
Rated control supply voltage Us at AC 60HZ | 24 - 240 |
Rated control supply voltage Us at DC | 24 - 240 |
Single-phase hysteresis possible | true |
Single-phase over current possible | true |
Single-phase under current possible | true |
Three-phase hysteresis possible | false |
Three-phase over current possible | false |
Three-phase under current possible | false |
Type of electric connection | Screw connection |
Voltage type for actuating | AC/DC |
Width | 17.5 |
With detachable clamps | false |
