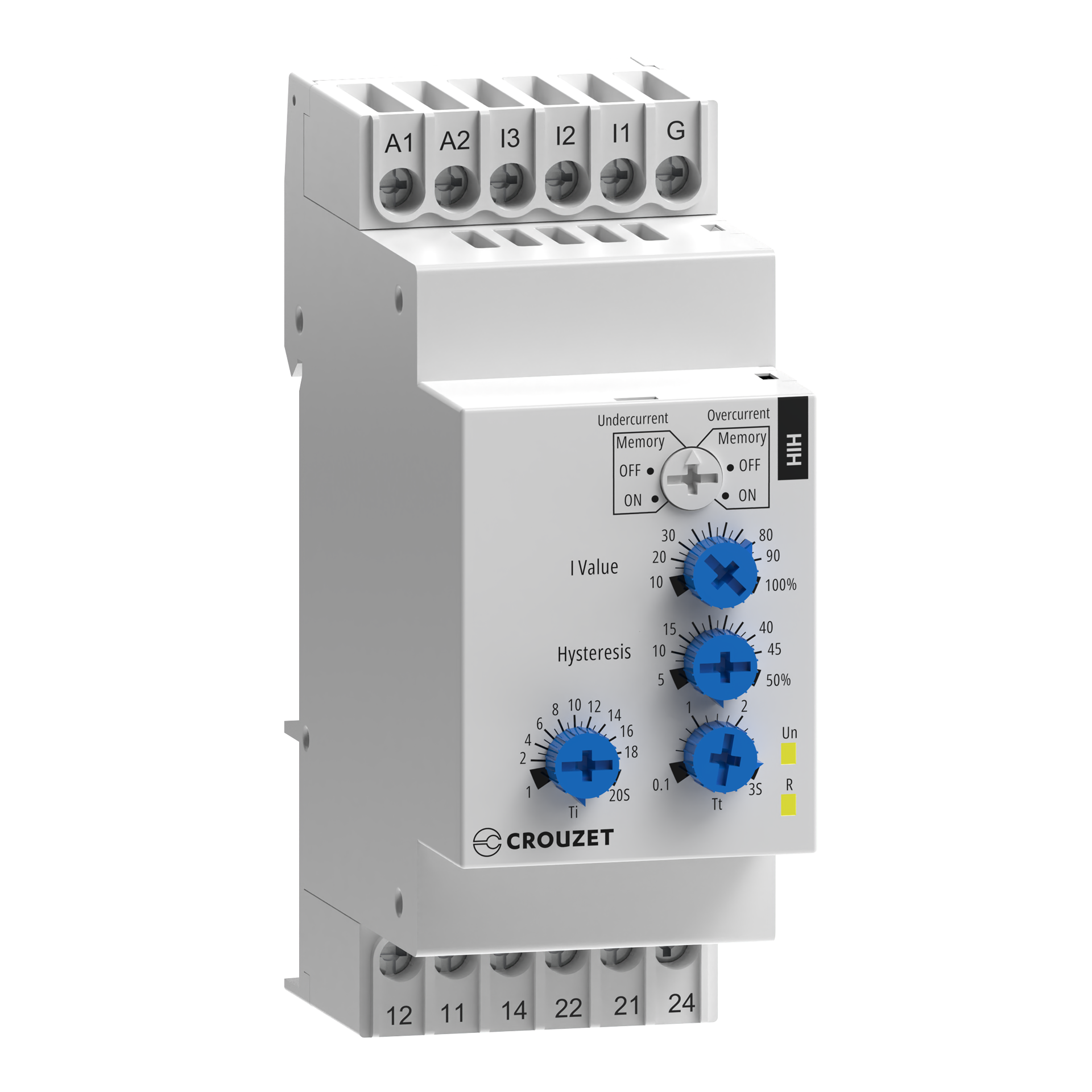

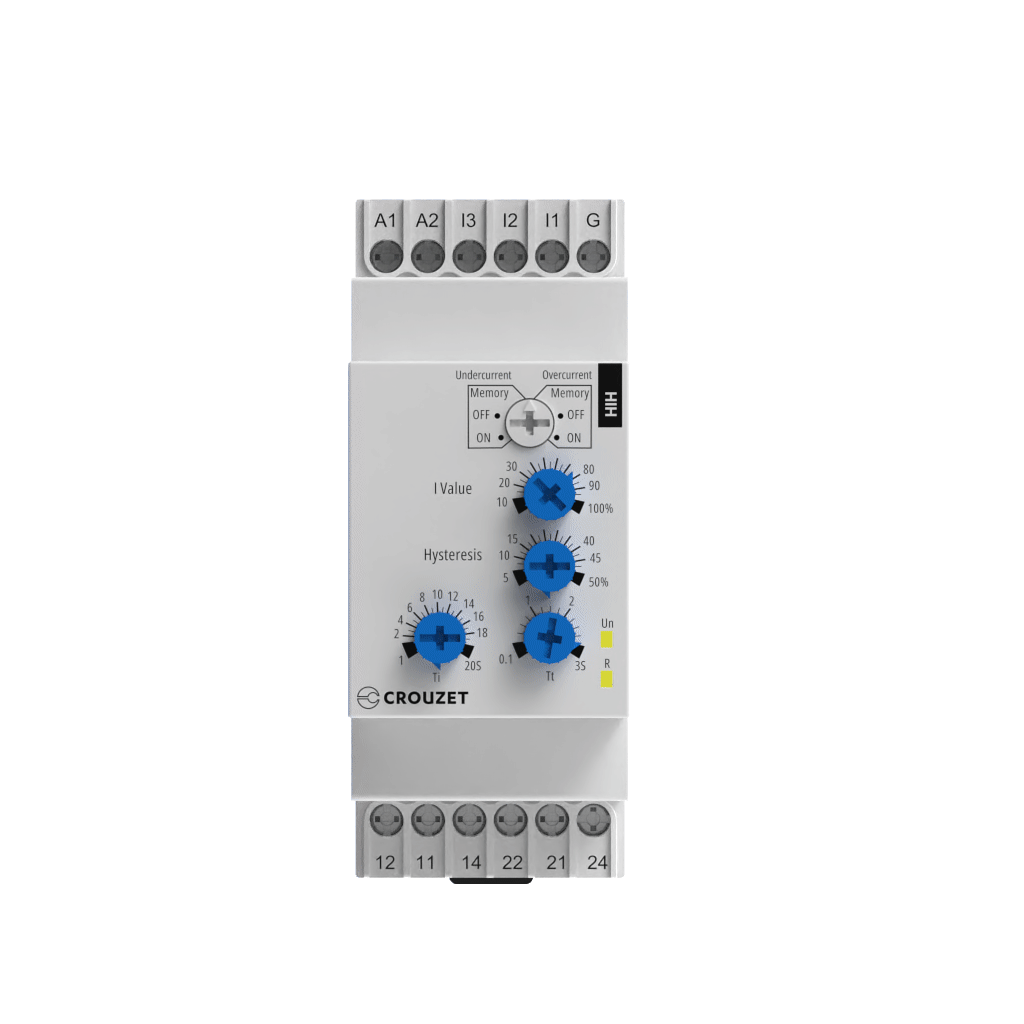

Current Control Relay HIH, 24-240 VAC/DC
Media & Documents
- Product info
- Product key features, technical specs, technical schemas and more.
- Certifications
- RoHS Approval, EU Declaration, ATEX Conformity and more.
- Media Kit
- High Resolution pictures, Arguments and more.
Distributors Stock Check
Checking stock arround the globe
Technical Specifications
| N/A | |
| Contains function DC-voltage over current | N/A |
| Contains function DC-voltage under current | N/A |
| Current measurement range | 10 |
| Depth | 68 |
| External current transformer | N/A |
| Function DC-current hysteresis | true |
| Height | 90 |
| Max. permitted delay-on energization time | N/A |
| Max. permitted off-delay time | N/A |
| Min. adjustable delay-on energization time | N/A |
| Min. adjustable off-delay time | 3 |
| Number of contacts as change-over contact | 2 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Rated control supply voltage Us at AC 50HZ | 24 - 240 |
| Rated control supply voltage Us at AC 60HZ | 24 - 240 |
| Rated control supply voltage Us at DC | 24 - 240 |
| Single-phase hysteresis possible | true |
| Single-phase over current possible | true |
| Single-phase under current possible | true |
| Three-phase hysteresis possible | N/A |
| Three-phase over current possible | N/A |
| Three-phase under current possible | N/A |
| Type of electric connection | Screw connection |
| Voltage type for actuating | AC/DC |
| Width | 35 |
| With detachable clamps | N/A |
