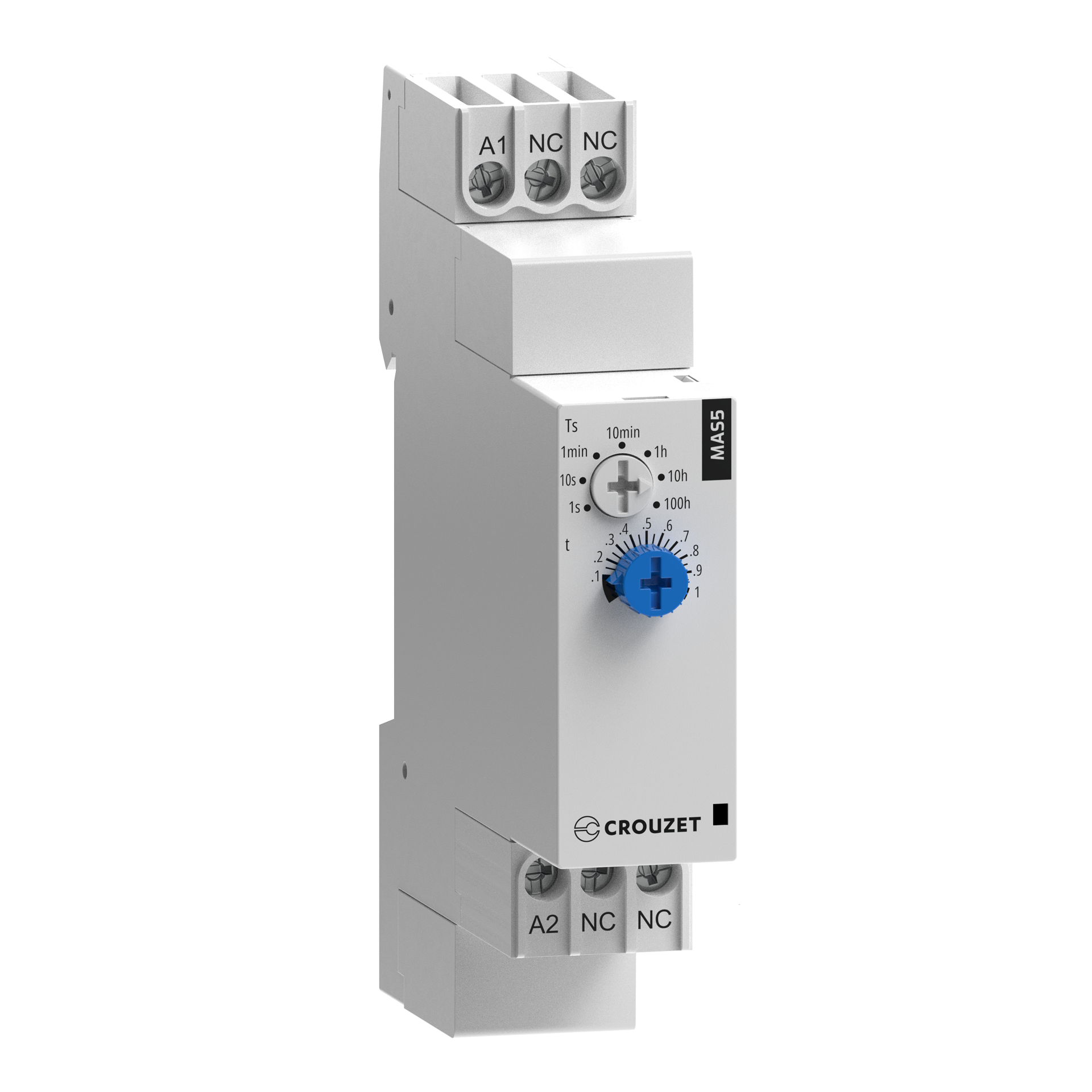

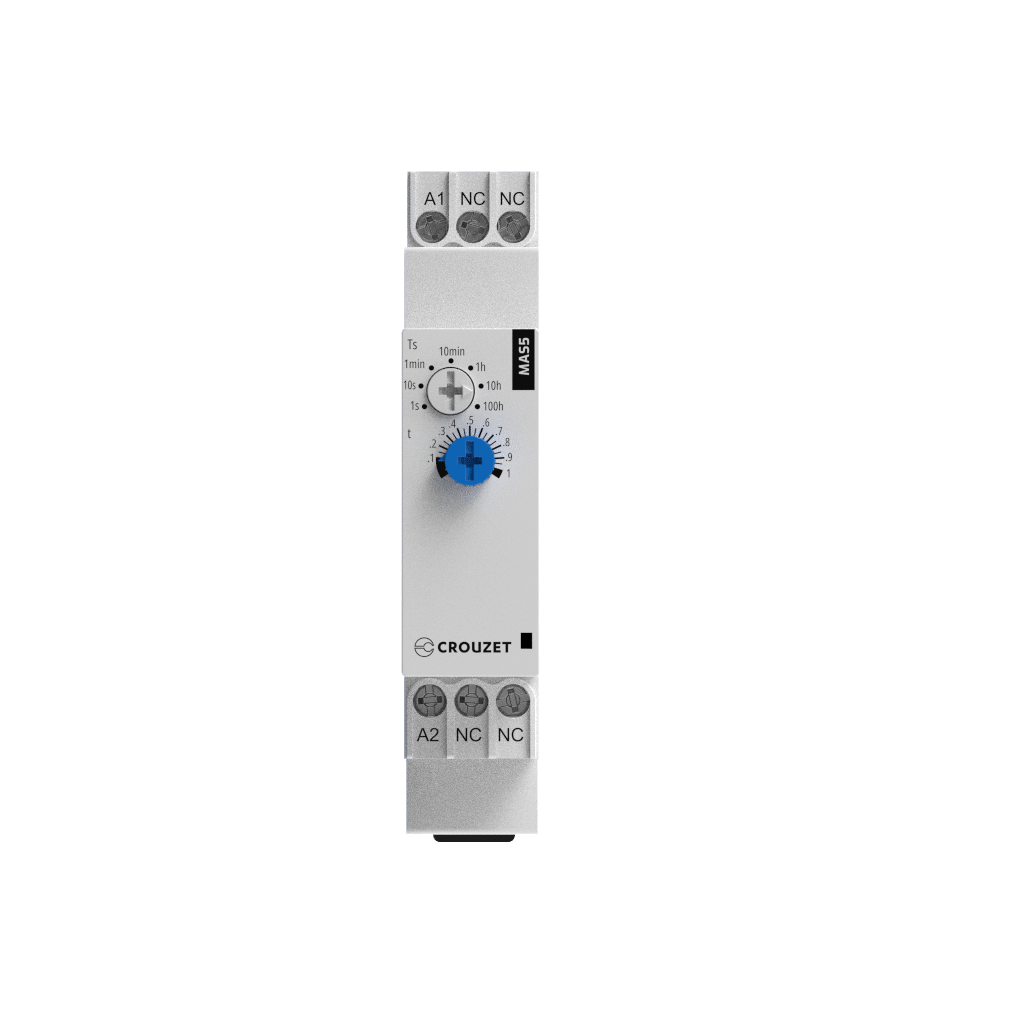

Chronos 2 Solid State Timer MAS5, 24-240 VAC/DC, 0.7 A, 0.1 s - 100 h, Function A: ON-Delay, DIN Rail, 17.5 mm
Media & Documents
- Product info
-
Product key features, technical specs, technical schemas and more.
- Datasheet EN (PDF)
- Automation & Control Overview EN (PDF)
- Automation & Control Overview FR (PDF)
- Automation & Control Overview IT (PDF)
- Automation & Control Overview DE (PDF)
- Automation & Control Overview ES (PDF)
- Automation & Control Selection Guide EN (PDF)
- Timers Selection Guide EN (PDF)
- Timers Selection Guide FR (PDF)
- Timers Selection Guide IT (PDF)
- Timers Selection Guide DE (PDF)
- Timers Selection Guide ES (PDF)
- Guides
- User Guides, Notices and more.
- Certifications
- RoHS Approval, EU Declaration, ATEX Conformity and more.
- Media Kit
- High Resolution pictures, Arguments and more.
Distributors Stock Check
Checking stock arround the globe
Technical Specifications
| N/A | |
| Clock function, starting with pause, variable | N/A |
| Clock function, starting with pulse, variable | N/A |
| Depth | 69 |
| Function delay on de-energization | N/A |
| Function delay-on energization | true |
| Function flashing, starting with pause, fixed time | N/A |
| Function flashing, starting with pulse, fixed time | N/A |
| Function floating contact on de-energization | N/A |
| Function floating contact on energization | N/A |
| Function pulse shaping | N/A |
| Function star-delta | N/A |
| Height | 90 |
| Nominal current | N/A |
| Number of outputs, delayed, change-over contact | N/A |
| Number of outputs, delayed, normally closed contact | N/A |
| Number of outputs, delayed, normally open contact | 1 |
| Number of outputs, undelayed, change-over contact | N/A |
| Number of outputs, undelayed, normally closed contact | N/A |
| Number of outputs, undelayed, normally open contact | N/A |
| Outputs, reversible delayed/undelayed | N/A |
| Pluggable on auxiliary contact block | N/A |
| Rated control supply voltage Us at AC 50HZ | 24 - 240 |
| Rated control supply voltage Us at AC 60HZ | 24 - 240 |
| Rated control supply voltage Us at DC | 24 - 240 |
| Remote operation possible | N/A |
| Suitable for DIN rail (top hat rail) mounting | N/A |
| Suitable for front mounting | N/A |
| Suitable for remote control | N/A |
| Time range | 0,1 - 100h |
| Type of electric connection | Screw connection |
| Voltage type for actuating | AC/DC |
| Width | 17.5 |
| With plug-in socket | N/A |
| With semiconductor output | true |
