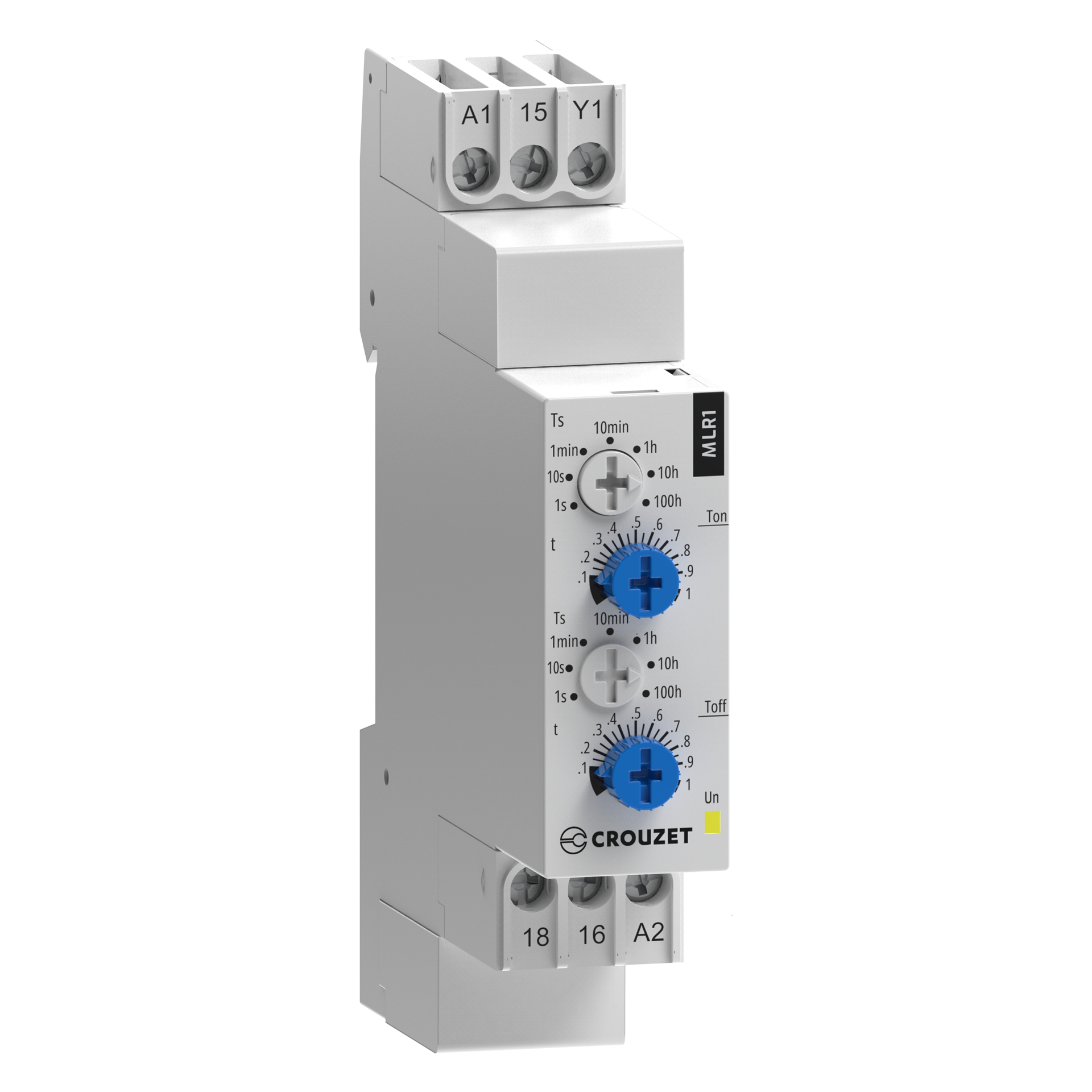

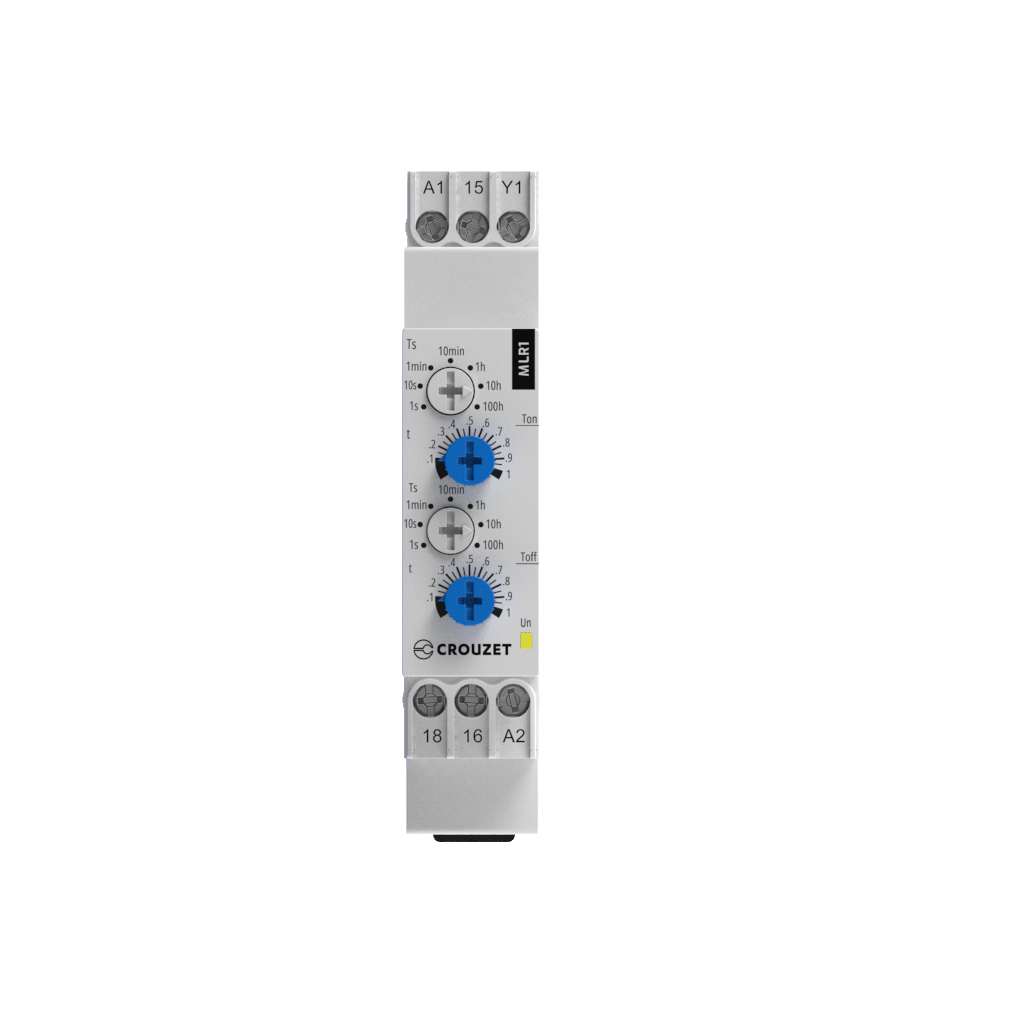

88827155 Chronos 2 Relay Timer MLR1, 24 VDC / 24-240 VAC, 1...

Click the image to zoom

Chronos 2 Relay Timer MLR1, 24 VDC / 24-240 VAC, 1 C/O, 8 A, 0.1 s - 100 h, Functions L/Li: Repeat Cycle, DIN Rail, 17.5 mm

Product info

Product key features, technical specs, technical schemas and more.

Guides

User Guides, Notices and more.

Certifications

RoHS Approval, EU Declaration, ATEX Conformity and more.

Media Kit

High Resolution pictures, Arguments and more.

Checking stock arround the globe

	N/A
Clock function, starting with pause, variable	true
Clock function, starting with pulse, variable	true
Depth	69
Function delay on de-energization	false
Function delay-on energization	false
Function flashing, starting with pause, fixed time	false
Function flashing, starting with pulse, fixed time	false
Function floating contact on de-energization	false
Function floating contact on energization	false
Function pulse shaping	false
Function star-delta	false
Height	90
Nominal current	8
Number of outputs, delayed, change-over contact	1
Number of outputs, delayed, normally closed contact	1
Number of outputs, delayed, normally open contact	1
Outputs, reversible delayed/undelayed	false
Pluggable on auxiliary contact block	false
Rated control supply voltage Us at AC 50HZ	24 - 240
Rated control supply voltage Us at AC 60HZ	24 - 240
Rated control supply voltage Us at DC	24
Remote operation possible	false
Suitable for DIN rail (top hat rail) mounting	true
Suitable for front mounting	false
Suitable for remote control	false
Time range	0,1 - 100h
Type of electric connection	Screw connection
Voltage type for actuating	AC/DC
Width	17.5
With plug-in socket	false
With semiconductor output	false
